Ceylon Eco Solar is offering serval options for your home to reduce your electricity bill, principally using solar PV panels for electricity production.

We propose, one of two On-Grid Net-Metering solutions provided by the CEB/ LECO. Net Accounting and Net Plus.

Net Accounting System is the popular choice of domestic customers due to two good reasons:

• It gives you a monthly rupee payment to you from the CEB/LECO
• You become insulated from future electricity tariff rate increases
• It is a ‘behind the meter’ solution, where the first use of the generated solar PV is for the customer and any excess is exported to the national grid.

Dom Tariff, Net Metering, Net Accounting

Net Plus Off Grid

Larger solar PV installations in commercial properties the preference is for the Net Plus System where all of the solar PV electricity generated is exported to the grid. The customer continues with the normal import for own use as before. If there are no internal switchboards where the significant solar PV generated kWh/ kVA cannot be accommodated in your building, the Net Plus is the choice.

Domestic customers can achieve a further cost reduction by opting for a electricity tariff change to three part Time of Use Tariff’, and achieve further reduction. Install a range of proven energy efficient equipment - LEDs, ceiling fans, alternative solar air conditioning systems. With the monthly savings achieved you will be able to the recover the cost of installation within about 4 years

Shown below is a copy of a Cheque paid by Ceylon Electricity Board to a Net Accounting customer at Rs 22 per kWh exported to the National Grid.

අප සමාගම විසින් ඔබ වෙත පහත සඳහන්  තාක්ෂණික යෝජනා ඉදිරිපත් කිරීමට කැමැත්තෙමු.

සූර්ය බල පුනර්ජනනීය මූලාශ්‍ර  භාවිතයෙන් ජාතික විදුලිබල පද්ධතිය මගින්  ඔබගේ නිවස ජාතික විදුලි බල පද්ධතියටසම්බන්ධ කිරීමට අවසර දී ඇති යෝජනා ක්‍රම තුනෙන්  ඔබට කැමති ෝජනා ක්‍රමයක්

එනම්

• ශුද්ධ මනු කරණය, ශුද්ධ ගිණුම්කරණය  සහ Nett Plus ක්‍රමය
• ජාතික විදුලිබල පද්ධතිය සම්බන්ධ නොවී බැටරි ක්‍රමයට ඔබගේ නිවසට සූර්ය බල විදුලි බලය ලබාදීම
• අති කාර්යක්ශම විදුලිපංකා විදුලි බුබුළු සහ වෙනත් අඩු බලශක්ති පාවිච්චිය කරන උපකරණ හඳුන්වා දීම
• ජාතික විදුලිබල පද්ධතිය දිනයේ වේලාව අනුව මිල ගනන් වෙනස් වෙන (ToU Tariff) ක්‍රමය අනුව ඔබගේ විදුලි බිල අවම කර දීම

PRODUCTS AND SERVICES WE PROVIDE FOR YOUR INSTALLATION

• All components for Domestic or Small Commercial Net Metering Installations
• All components for Domestic or Small Commercial Off Grid Solar Installations
• All components for Domestic or Small Commercial off grid DC solar air conditioning
• High efficiency with electronically commutated motors (ECMs, EC motors) that will reduce you power consumption by 50% or more
• New generation high efficiency long life LED lighting system to replace your CFL lights
• Deep Cycle AGM/ VRLA deep cycle batteries for solar, telecommunications applications
• Tariff re-selection and providing energy cost reduction solutions
• An expenses plan for you - It includes initial costs, periodical replacement costs, system life cost analyses, CEB/LECO monthly bill costs, bank loan repayment plan - all given upfront prior to your installation for your consideration and acceptance.
• A periodical service plan that will preserve your equipment for loan life and will pay the service plan costs back to you by the benefit you receive

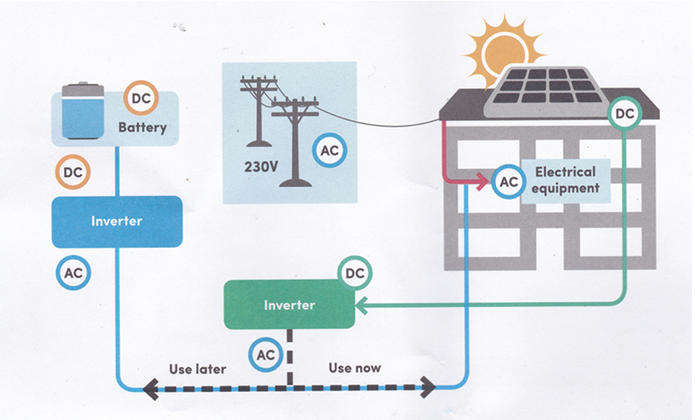

HOW DOES YOUR SOLAR PV SYSTEM WORK?

HOW DOES YOUR BATTERY STORAGE SYSTEM WORK?

In a battery storage system, we add batteries to the home system we install so that you can keep your PV electricity for your own use and will not give it away to the power supply mains. In this manner you will have electricity at home when there is a mains power failure. This is comparable to having a home generator set give you power during a blackout.

In smaller domestic the battery systems your only connection to the mains is via home power point to maintain the battery charge in the correct balance. We may install special protection automatic isolation devices to separate you from the mains supply. Your home electrical wiring and installation will be certified by a professionally qualified electrical engineer.

Why is AC used and not DC?

In DC electricity the current runs in one direction always, and in AC it runs in both directions alternatively. This happen s in the manner electricity is tapped at the power generating stations - hydro, coal, gas or others. We can take it either as DC or AC.

Electricity generation firstly developed in the 19 the century as DC electricity. Although it appears more complex AC electricity is the main supply system throughout the world. AC has far superior qualities for use in domestic, commercial and industrial power management. It is rare to find DC applications although DC has important advantages over AC in specific usages.
So, a 230 volts, 50 Hertz (or cycles per second) system is used in homes in Sri Lanka.

AC and DC isolator switches in an On Grid Solar PV System

Safety is the most important criterion in an electrical system whether AC or DC

AC isolator switches are used for disconnecting the inverter from a grid tied system for maintenance, repair or installation. In the diagrams provided the AC isolator is shown as 'AC Isolation' and used in most PV applications. The position of the isolation switch may differ in each individual installation. Isolation of the AC supply de-energises the Inverter, and therefore the export of power to the grid, and makes it safe to Isolate the DC breakers. When switching on a grid connected PV Solar system back to life, the last switch to be switched on s the AC Isolator. This now activates the whole electricity generation process. So, as a rule, the AC isolator is the first OFF when de-activating the system and the last to be switched ON when activating the system.

WHY CHOOSE CEYLON ECO SOLAR?

Sri Lanka's own environment is unique and fragile. It has a biodiversity that is the envy of the world. Our ancestors have preserved the land and seas endemic flora and fauna with life sacrifice. Ceylon Eco Solar strives to preserve it for future generations. Our ultimate vision is of a country powered entirely by renewable energy. We work and associate with other renewable energy associations in Sri Lanka and we represent the cause of renewable energy to the various government and non- government bodies.

We strive to

Become a leader and a knowledge centre in our field by leveraging global research knowledge base and partnerships on renewable power and energy efficiency Broaden the scope of available renewable energy technology in line with the latest improvements in concept and design

ඉතා කුඩා දූපතක් වූ අපගේ දේශය අපගේ මුතුන්මිත්තන් විසින් ජීවිත පූජාවෙන් ආරක්ෂා කොට අපට භාර දී ඇත. මෙම දේශයේ ගහ කොළ සතා සිව්පාවා ලෝකයේ වෙනත් මෙතරම් කුඩා  දූපතක අද දින නොමැතිය. එයට හේතුව අපගේ පාරම්පරික දර්ශනයත් ගහකොළ සත්වයාට හිරිහැර නොකර සහජීවනයෙන් ජීවිකාව කර ගැනීමට  මුල්වූ බුදු දහමයි.

සතා සිවුපාවා ජීවත්වන  කැලෑ ප්‍රදේශ ආරක්ෂා කොට සූර්ය බලයෙන් විදුලිය නිපදවිය හැකි ජනශූන්‍ය ප්‍රදේශ වල දීර්ඝකාලීන සැලසුම් ඇතිව ජනපද ඇති කිරීමට සූර්ය බල ශක්තිය ඉවහල් වීම අපේ දේශයේ වාසනාවකි.

සමාගමේ කටයුතු වලට හැර, අප දේශයේ පරිසරය සුරක්ෂිත කිරීම සඳහා රජයේ දෙපාර්තමේන්තු  වලටත් වෙනත් රාජ්‍ය සහ රාජ්‍ය නොවන රාජ්‍ය ආයතන වලටත් අපි වරින්වර දැඩිලෙස අදහස් ඉදිරිපත් කරන්නෙමු.
